Discover the product

Description

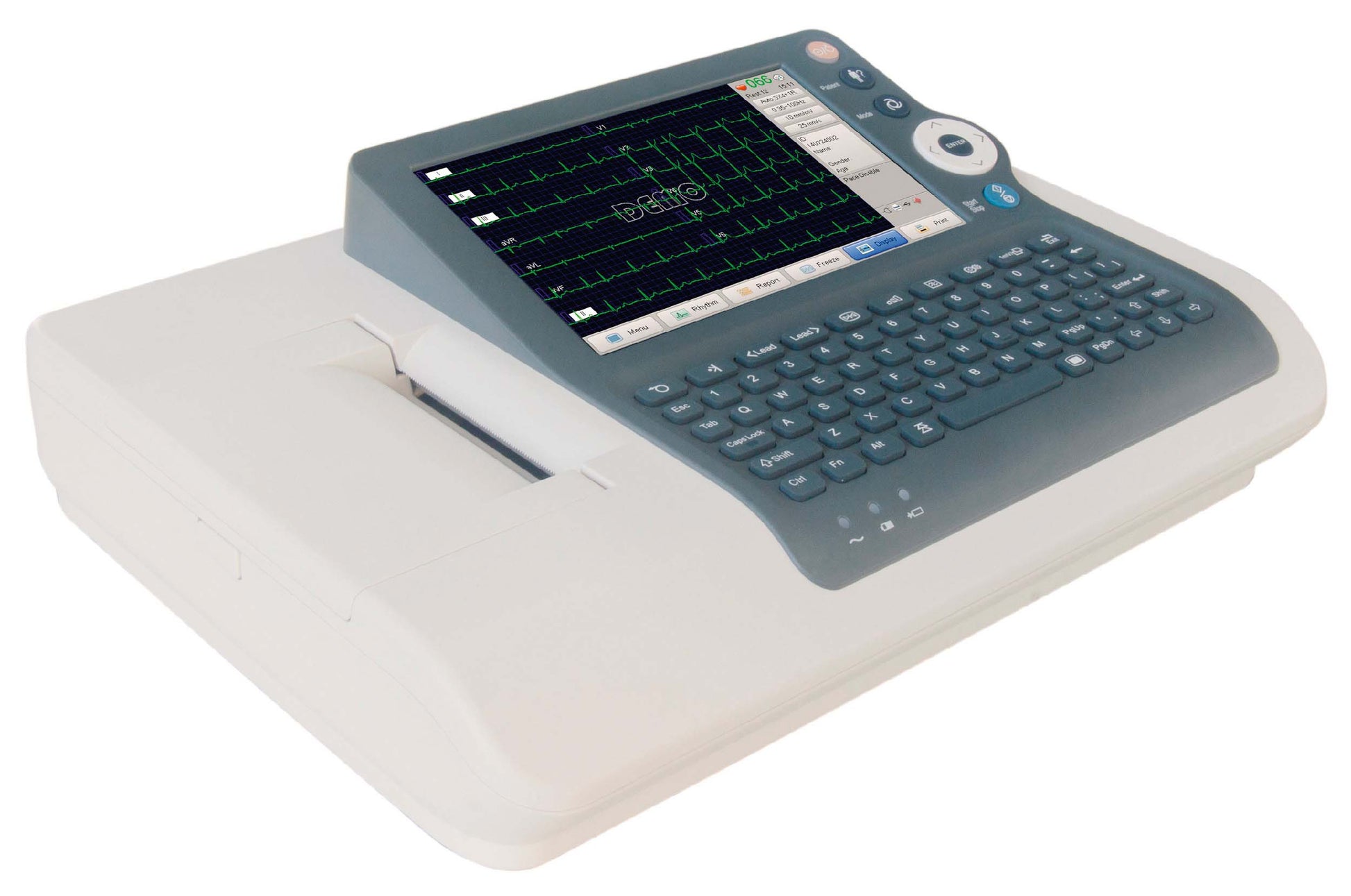

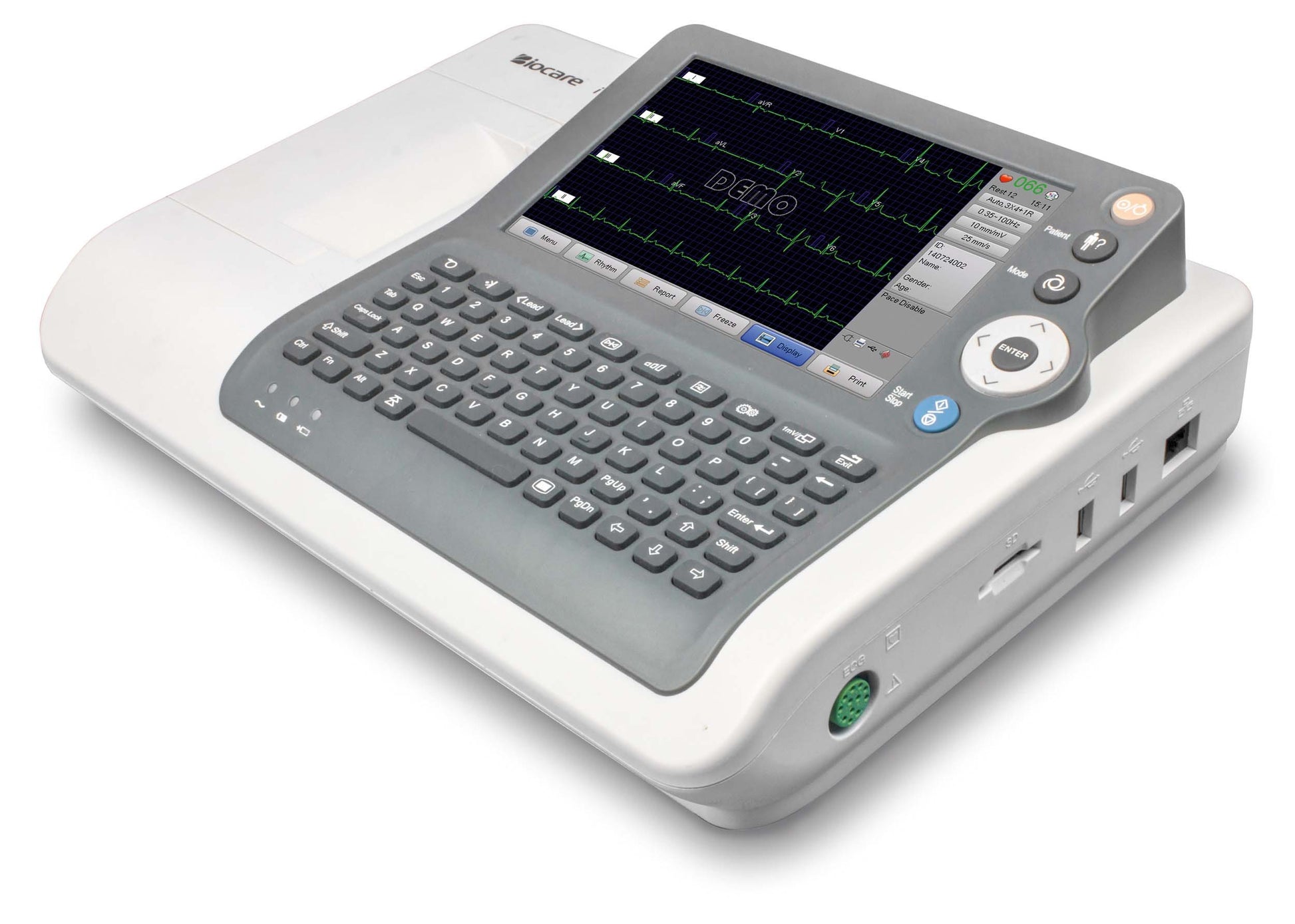

Newtech Cardio E3 PRO 3-Channel Electrocardiograph

7 inch TFT LCD color tilted screen.
On-screen menu with navigation key.
Silicone alphanumeric keyboard.
Freeze Track – 300s buffer.
Displaying results on screen.
Memory 1,500 traces.
Connectivity: 2 USB, 1 network, SD card.
Exportable format (SD or USB): PDF, XML, JPEG, DICOM.
Features :
Recording modes: automatic, manual, rhythm (30s to 300s with analysis).
Calculation of parameters and interpretation.
7-inch high-resolution color display, 12 leads (3×4, 3×4+1R, 6×2, 6×2+1R, 12×1).
Recording paper: thermal, 80 mm x 30 m (roll), 80 x 90 mm (bundle).
Print sizes: 1×12, 1×12+1R, 3×4, 3×4+1R.
Sensitivity: Auto, 0.625 mm/mV, 1.25 mm/mV, 2.5 mm/mV, 5 mm/mV, 10/5 mm/mV, 10 mm/mV, 20/10mm/mV, 20 mm/mV, and 40 mm/mV.
Printing speeds: 5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s.
Measurement parameters: Ventricular rate, PR interval, QRS time limit, QT/QTC interval, P/QRS/T axis, RV5/SV1 amplitude and RV5+SV1 amplitude.
Signal acquisition: simultaneous 12 leads, 10 s to 24 s.
Filters: EMG, AC, baseline (0.01 to 0.8Hz).
Sampling rate: 8000 Hz.
Low pass filters: 25, 35, 75, 100, 150, 250Hz.
Response frequency: 0.05 Hz ? 250 Hz.
2.5 hours of battery life.
Comes with:
Patient cable with banana plugs, 4 limb clips, 6 precordial bulbs.

Weight : 2.3 kg
Warranty : 2 years
Power supply : mains or 14.8 V ~ 2,200 mAh lithium-ion battery (2.5 hours of autonomy)

Description

Newtech Cardio E3 PRO 3-Channel Electrocardiograph

7 inch TFT LCD color tilted screen.
On-screen menu with navigation key.
Silicone alphanumeric keyboard.
Freeze Track – 300s buffer.
Displaying results on screen.
Memory 1,500 traces.
Connectivity: 2 USB, 1 network, SD card.
Exportable format (SD or USB): PDF, XML, JPEG, DICOM.
Features :
Recording modes: automatic, manual, rhythm (30s to 300s with analysis).
Calculation of parameters and interpretation.
7-inch high-resolution color display, 12 leads (3×4, 3×4+1R, 6×2, 6×2+1R, 12×1).
Recording paper: thermal, 80 mm x 30 m (roll), 80 x 90 mm (bundle).
Print sizes: 1×12, 1×12+1R, 3×4, 3×4+1R.
Sensitivity: Auto, 0.625 mm/mV, 1.25 mm/mV, 2.5 mm/mV, 5 mm/mV, 10/5 mm/mV, 10 mm/mV, 20/10mm/mV, 20 mm/mV, and 40 mm/mV.
Printing speeds: 5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s.
Measurement parameters: Ventricular rate, PR interval, QRS time limit, QT/QTC interval, P/QRS/T axis, RV5/SV1 amplitude and RV5+SV1 amplitude.
Signal acquisition: simultaneous 12 leads, 10 s to 24 s.
Filters: EMG, AC, baseline (0.01 to 0.8Hz).
Sampling rate: 8000 Hz.
Low pass filters: 25, 35, 75, 100, 150, 250Hz.
Response frequency: 0.05 Hz ? 250 Hz.
2.5 hours of battery life.
Comes with:
Patient cable with banana plugs, 4 limb clips, 6 precordial bulbs.

Weight : 2.3 kg
Warranty : 2 years
Power supply : mains or 14.8 V ~ 2,200 mAh lithium-ion battery (2.5 hours of autonomy)

Biocare par Biocare

Cardio E3 PRO Newtech 3-Channel Electrocardiograph - BIOCARE

Prix habituel
1.762,50€
Prix soldé
1.762,50€
Prix habituel
Taxe inclu. Frais de port calculés dans le panier.

Prix HT. Prix TTC affichés lors de la validation de commande.

En rupture de stock
Order before 4pm and your order will be shipped today*

Translation missing: en.products.product.sku:441.001

Secure CB payment by Up2Pay from Crédit Agricole
Free delivery from 100€ purchase including tax
Delivery to your office, relay point or home
